A 5-Level Efficient IFPWM Power Coding Approach Encoding LTE for Class-S Digital-RF Transmitter with Distortion Correction


    •  Zhu, Q.; Ma, R.; Duan, C.; Mukai, K.; Shinjo, S.; Teo, K.H., "A 5-Level Efficient IFPWM Power Coding Approach Encoding LTE for Class-S Digital-RF Transmitter with Distortion Correction", IEEE Radio Wireless Week (RWW), January 2014.
      BibTeX Download PDF
      • @inproceedings{Zhu2014jan,
      • author = {Zhu, Q. and Ma, R. and Duan, C. and Mukai, K. and Shinjo, S. and Teo, K.H.},
      • title = {A 5-Level Efficient IFPWM Power Coding Approach Encoding LTE for Class-S Digital-RF Transmitter with Distortion Correction},
      • booktitle = {IEEE Radio Wireless Week (RWW)},
      • year = 2014,
      • month = jan,
      • url = {http://www.merl.com/publications/TR2014-003}
      • }
  • MERL Contacts:
  • Research Areas:

    Electronics & Communications, Wireless Communications


TR Image

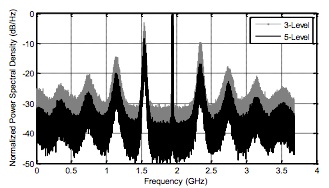

The generated switching pulse-train spectrum (3-/5-level).
