TR2013-049

Cutter Workpiece Engagement Calculations for Five-axis Milling using Composite Adaptively Sampled Distance Fields


    •  Erdim, H., Sullivan, A., "Cutter Workpiece Engagement Calculations for Five-axis Milling using Composite Adaptively Sampled Distance Fields", CIRP Conference on Modeling of Machining Operations (CMMO), June 2013.
      BibTeX TR2013-049 PDF
      • @inproceedings{Erdim2013jun,
      • author = {Erdim, H. and Sullivan, A.},
      • title = {Cutter Workpiece Engagement Calculations for Five-axis Milling using Composite Adaptively Sampled Distance Fields},
      • booktitle = {CIRP Conference on Modeling of Machining Operations (CMMO)},
      • year = 2013,
      • month = jun,
      • url = {https://www.merl.com/publications/TR2013-049}
      • }
  • Research Areas:

    Computer Vision, Control

TR Image

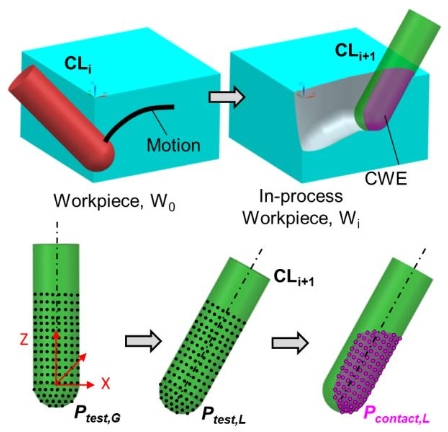

The extraction of engagement angles from data points corresponding to CWE points.
Abstract:

Composite adaptively sampled distance fields are a new approach to shape representation that is well suited for Numerically Controlled (NC) milling simulation. In NC milling, as the milling tool moves along the tool path, it carves out a swept volume and a portion of the workpiece is removed. During the milling tool motion, it is in contact with the workpiece over an instantaneous common surface which is called Cutter Workpiece Engagement (CWE) surface. In order to model the process mechanics and dynamics accurately, it is important to have a precise geometric representation of the CWE surface. One of the fundamental difficulties has been the accurate and computationally efficient determination of this surface along the tool path for five-axis milling applications. In this paper, we provide a brief introduction to distance fields for swept volumes and describe a new method for determining the CWE surface for general and complex five-axis NC milling. The combination of high simulation speed, high accuracy and modest memory requirements provide significant improvements over existing approaches.



  • Related News & Events

    •  NEWS    CIRP CMMO 2013: publication by Alan Sullivan and others
      Date: June 13, 2013
      Where: CIRP Conference on Modeling of Machining Operations (CIRP CMMO)
      Research Area: Computer Vision
      Brief
      • The paper "Cutter Workpiece Engagement Calculations for Five-axis Milling using Composite Adaptively Sampled Distance Fields" by Erdim, H. and Sullivan, A. was presented at the CIRP Conference on Modeling of Machining Operations (CIRP CMMO).
    •
